Understanding Pooling Layers: A Key to Better Neural Networks

Do you know how convolutional neural networks spot patterns in large data sets? The secret lies in pooling.

Pooling decreases the complexity of deep learning models by reducing the input size while preserving essential features and relationships between data. This operation is also known as downsampling or subsampling.

Convolutional neural networks (CNNs), a type of artificial neural network, typically use pooling operations for image recognition and processing. With CNN, there is no need to manually extract features from visual data. Instead, these networks apply filters of different sizes over the image to learn about its features while ensuring translation variance. It means that even if the object moves to a different location in an image, it will be recognized as the same object.

These convolutional neural networks have three fundamental layers: convolutional, pooling, and fully connected dense layers. The convolutional layer creates a feature map through filters that help recognize patterns.

The latter, a fully connected dense layer, helps classify in the final stages of a neural network.

Pooling layers also prevent a network from overfitting, a cause of learning irrelevant details. This increases the network’s speed in processing images and makes it less likely to make mistakes.

Despite reducing the dimensions, pooling layers retain essential features needed for classification. This allows CNNs to manage large images and deep architectures more effectively.

How do pooling layers work?

Pooling layers make CNN faster and more efficient. These layers use a sliding window (2x2 or 3x3) to move across an image in steps. The operation is carried out at each step based on the type of pooling employed. For example, if maximum pooling is chosen, the largest value in the window is taken. This largest value represents the most essential feature of the image.

Suppose the input is an image of three dogs. The largest value here would correspond to the dog's face. On the other hand, if average pooling is chosen, it will give an overview of the image's features, such as a dog's pattern or structure.

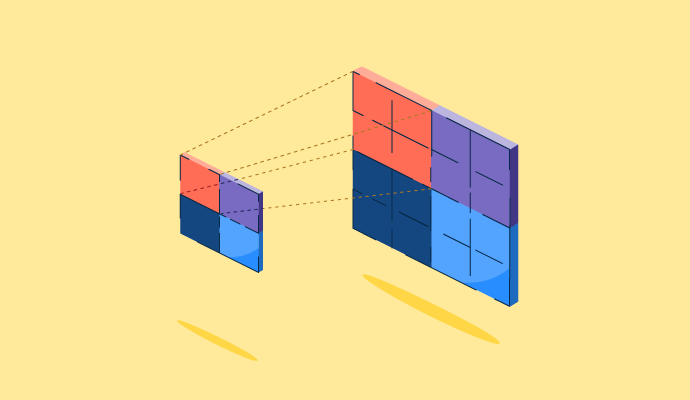

The pooling operation creates a downsampled representation of input data. As a result, the image becomes smaller and more accessible to process, increasing the computational speed.

You can apply pooling layers multiple times in deep learning models, progressively reducing feature maps’ spatial dimensions. This allows the network to manage large images and deep architectures more effectively.

Why are pooling layers important?

When convolutional layers produce a feature map, it’s location-dependent. This means that an object would be unrecognizable if moved to a different location. The pooling layer offers translational invariance, ensuring that even if an object in an image is translated, the convolutional neural network can still recognize it.

The pooling layers exist above the convolutional layer, where they downsample the convolution layer’s output through filters of various dimensions. Normally, max or average pooling layers are used, but there are various other types of pooling layers used in CNNs depending on the use case.

Types of pooling layers

There are different types of pooling, such as max, average, global, or stochastic pooling. Take a deep dive to understand their benefits and how they differ.

Max pooling

Max pooling is the most common pooling method. It divides the input feature map into smaller regions, called pooling windows or receptive fields. These are typically 2x2 or 3x3 in size. In each pooling window, an aggregation operation occurs, where the maximum value in the 2x2 grid is selected.

The maximum value corresponds to the most significant feature within each image region, making it easier for the system to identify key patterns.

Below is the process of max pooling.

• Create pooling windows. The feature map is divided into non-overlapping regions of 2x2 or 3x3 sizes.
• Pick the maximum value. Max pooling picks up the highest value for each region.
• Produce a pooled feature map. Using the highest value from each region, create a pooled feature map. This will be of lesser dimensions than the convoluted feature map.

As the size of the feature map reduces, so does the computational power required to process the image. This type of pooling captures the most important features and discards the irrelevant details. It makes the network more robust to small shifts or translations in an image.

Average pooling

Average pooling works the same as max pooling, but rather than selecting the maximum value, it takes the mean value of every region. By considering all values in a region, average pooling retains more information about the features.

Here’s how average pooling works:

• Divide the feature map. The feature map is divided into non-overlapping regions.
• Calculate the mean value. Average pooling calculates the mean of all values in an area.
• Develop a pooled feature map. These mean values make up the pooled feature map. The pooled feature map produced by average pooling is smoother and less noisy than that produced by max pooling.

Global pooling

Global pooling is applied over the entire feature map and gives out a single value for each feature map. This type of pooling layer works in the final stages of convolutional neural networks, where the feature map gets converted into a fixed-sized vector before it’s passed on to the fully connected layers.

Global pooling also includes max and average pooling methods. Global max pooling uses the maximum value from the entire feature map, while global average pooling takes the mean value instead. It delivers a fixed output size regardless of the size of the input, making it simpler to connect to dense, fully connected layers.

Stochastic pooling

Stochastic pooling introduces randomness into the pooling process. It chooses values based on probability distribution derived from different values in the pooling region. Here, you don’t select a maximum or average value from different areas on the feature map.

Source: Citeseerx

The randomness prevents the network from overfitting to the training data. This leads to better generalization, allowing the network to explore different feature representations.

Benefits and challenges of pooling layers

Pooling layers preserve the most critical characteristics of input data by offering translation invariance. This allows the model to generate the same output regardless of minor input changes.

These layers are crucial in machine learning models’ size and complexity, making them useful in several machine learning tasks. They’re placed after convolutional layers in a CNN, where they downsample the output, helping the model process it faster. These layers also help select the most important features of an image by using the max pooling technique.

Although the pooling layer reduces the dimensions of an input layer, it also attributes to some information loss from the feature maps. There’s a possibility of over-smoothing feature maps that might lead to a loss of details crucial for the final regression task.

Moreover, hyperparameters such as pooling regions and stride size come in. Stride evaluates how many squares or pixels filters skip when moving across an image from left to right or from top to bottom. You need to tune them to achieve optimal performance, which can be time-consuming and require reasonable model expertise.

Making CNNs faster

Pooling layers make neural networks more robust against distortions in the input data. They also improve the model's performance on new unseen data by downsampling it and preventing it from fitting too closely with training data.

Overall, they make convolutional neural networks faster by simplifying data while keeping important information.
