CAD File

What is a CAD file?

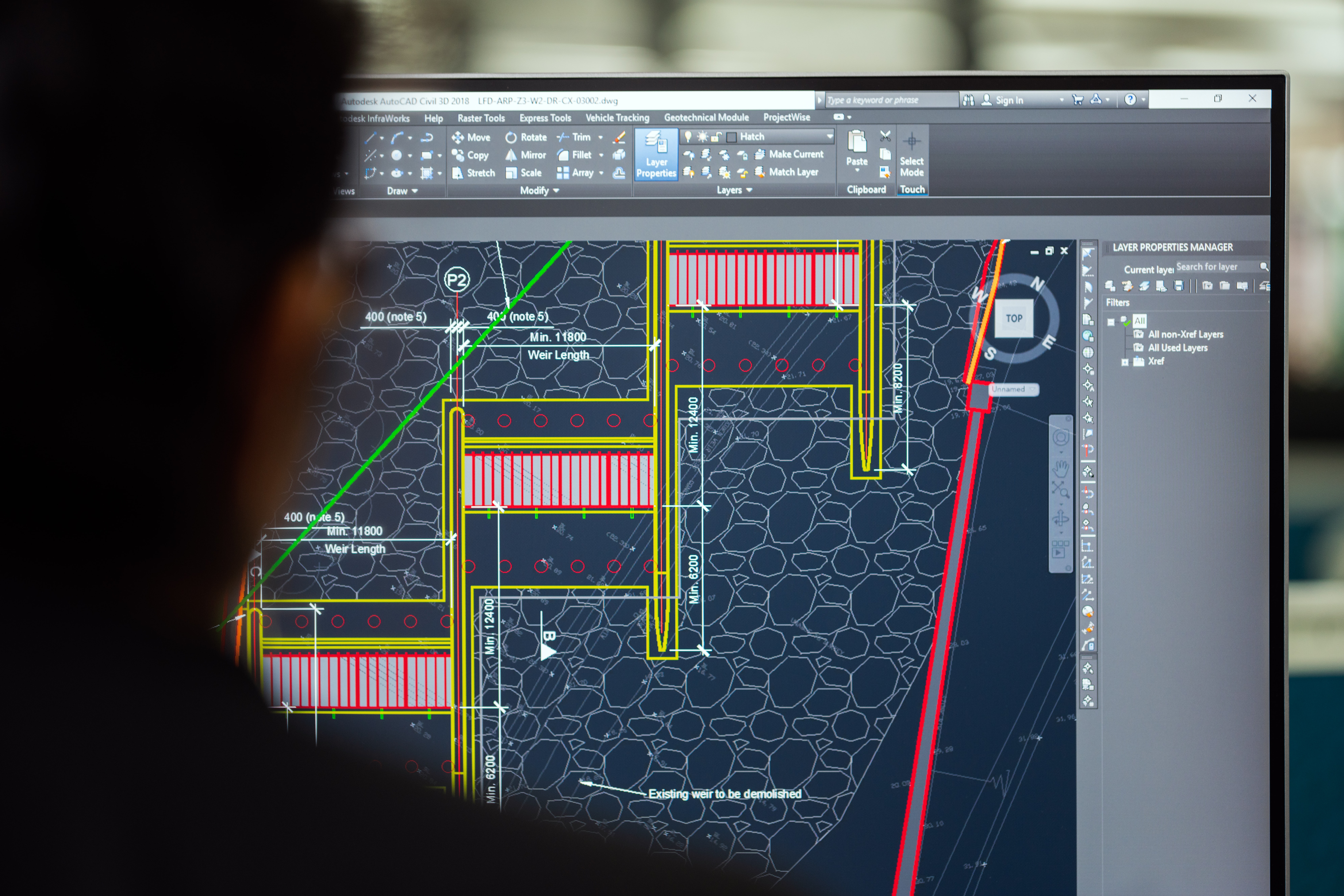

A CAD file is a digital design file created using computer-aided design (CAD) software that contains 2D drawings or 3D models of objects, parts, or assemblies. It is used to produce technical drawings, blueprints, schematics, and 3D renderings for engineering, architecture, construction, and product design.

CAD files store structured design data, including dimensions, geometry, materials, and annotations. While the .cad extension exists, common CAD file formats include DWG, DXF, and STEP. 2D CAD files typically represent flat technical drawings, while 3D CAD files contain detailed models used for visualization, simulation, and manufacturing.

What are the types of CAD files?

CAD files are primarily classified into two types:  proprietary (native) formats and non-proprietary (neutral) formats. The difference depends on software compatibility, data accessibility, and how the design file is shared across systems.

What are the benefits of using a CAD file?

CAD files provide precision, structured design storage, and improved collaboration across engineering and manufacturing workflows.

 Key benefits include:

• Accurate design creation: Enable the development of detailed 2D technical drawings and precise 3D models with measurable dimensions and geometry.
• Improved visualization: Allow designers and engineers to create digital renderings for simulation, validation, and prototyping before production.
• Centralized information repository: Store structured design data such as topology, materials, annotations, and technical specifications in a single digital file.
• Software compatibility: CAD file formats determine how designs are opened, edited, and shared across different CAD systems.
• Efficient collaboration and data export: Support streamlined sharing, version control, and integration with manufacturing and production systems

What are the basic elements of a CAD file?

A CAD file typically contains four core elements: geometry and topology data, product structure, visual attributes, and metadata. These components define how a 2D drawing or 3D model is built, organized, displayed, and managed within CAD software.

• Geometry and topology representation: CAD models commonly use boundary representation (B-Rep) to define shapes and structures:
  • Geometry describes measurable properties such as dimensions, surface area, volume, and center of mass.
  • Topology defines how elements are connected, including bodies, shells, faces, and edges that form solid, sheet, or wireframe models.
• Product structure: Product structure organizes parts and assemblies in a hierarchical system. Individual components are grouped into assemblies, allowing users to manage relationships, control visibility, duplicate models, and analyze interdependencies within the CAD file.
• Visual attributes:  CAD files store visual properties such as color, material, lighting, and texture. These attributes enhance model presentation, improve visualization, and support stakeholder communication during design reviews and simulations.
• Metadata: Metadata provides descriptive information about the design, including object names, IDs, layers, product and manufacturing information (PMI), validation data, and user-defined properties. Embedded metadata ensures traceability, supports data management, and preserves essential product information during file sharing or download.

Together, these elements make CAD files structured, interoperable, and suitable for engineering design, manufacturing workflows, and collaborative development.

What are the CAD file best practices?

The primary best practice for managing CAD files is choosing the right file format to ensure compatibility, data integrity, and seamless collaboration. Using an unsuitable format can result in data loss, translation errors, or workflow disruptions when sharing files internally or externally.

Key CAD file format considerations include:

• IGES (.igs, .iges): vendor-neutral format that supports assembly structures, colors, and naming conventions. It is widely used for data exchange but may result in larger file sizes and limited support for advanced modeling features.
• ACET-SAT (.sat,.sab):  Provides full support for boundary representation (B-Rep) geometry and topology. It works efficiently within ACIS-based applications but may have limited compatibility and reduced visual attribute support in non-ACIS systems.
• STEP (.stp, .step): A widely adopted neutral format designed for interoperability across CAD, CAM, and 3D modeling software. While highly compatible, it may introduce minor numerical rounding differences or partial data translation issues in complex workflows.

Selecting an appropriate CAD file format helps preserve geometry, topology, metadata, and design intent, ensuring accurate data export, cross-platform compatibility, and efficient engineering collaboration.

Frequently asked questions about CAD files

Q1. Is CAD the same as DWG?

No, CAD is not the same as DWG. CAD refers to computer-aided design software and the design process, while DWG is a specific CAD file format developed by Autodesk to store 2D drawings and 3D models. DWG files are commonly used in AutoCAD and other design tools, and their file size can vary depending on the complexity of the design.

Q2. Is DXF a CAD file?

Yes, DXF (Drawing Exchange Format) is a type of CAD file used for data exchange between design programs. Unlike proprietary formats such as DWG, DXF is designed to support interoperability and data export across different CAD software platforms. It can store 2D and 3D design data and is widely used for sharing technical drawings.

Q3. What program opens CAD files?

CAD files can be opened using computer-aided design software such as AutoCAD, SolidWorks, Fusion 360, and DraftSight. Some file viewer applications and cloud-based CAD platforms also allow users to view or convert CAD file formats without full design software. The ability to open a CAD file depends on its format, compatibility, and file size.

Q4. Who uses CAD files?

CAD files are used by engineers, architects, product designers, manufacturers, and construction professionals. These users rely on CAD software to create technical drawings, 3D models, schematics, and prototypes for design, simulation, and production workflows. CAD files also support collaboration and data export across teams and industries.
